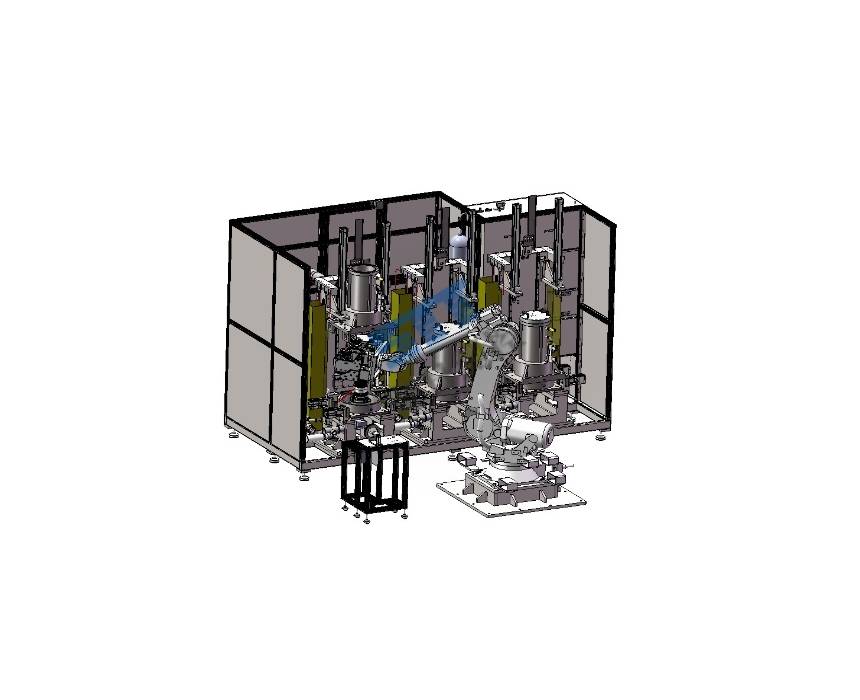

Air Spring Helium Leak Tester
Product Introduction：
Test Cycle：30s/pcs
Helium Test Charge Pressure：10bar，Check that the leakage nitrogen charging pressure is 8.5bar
Product leakage rate：2.5E-5mbarl/s (multiple)，The equipment accuracy can reach 1E-7Pam3/s
Number of vacuum boxes：3pcs，Each vacuum box detects one workpiece, the robotic arm loads and unloads materials, and each workpiece is independently traced
The leak detector opens to check the vacuum degree(vacuum chamber)：≤20Pa(absolute pressure)
Product pumping pressure：1000pa(absolute pressure)
Helium concentration of 70%, helium recovery after testing is completed
