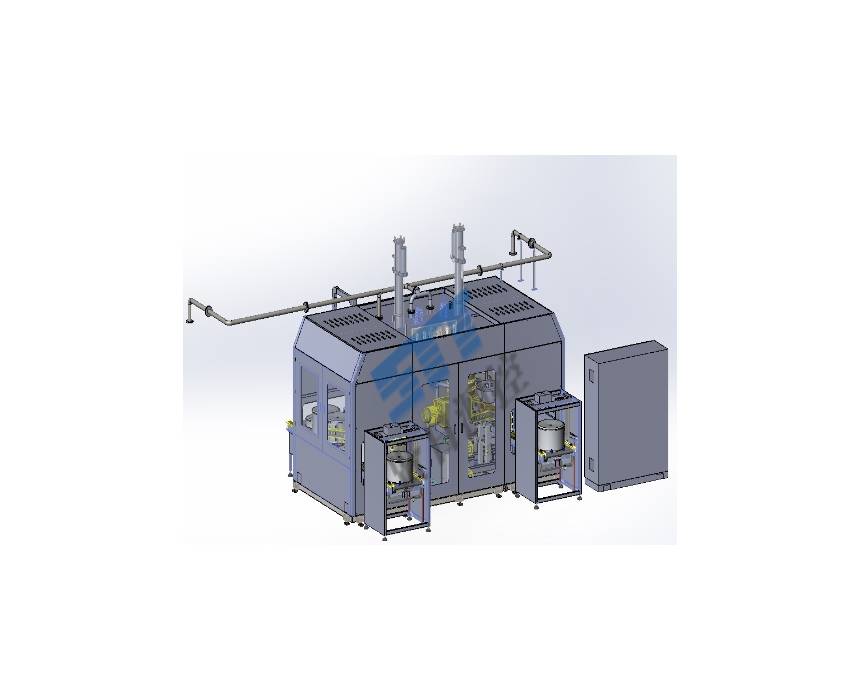

Aluminium Wheel Leak Tester—Double Chamber
Product Introduction:
Test Cycle:18S (STT-MW-18S)
The range of the wheel hub dimension: 13"~22"
Fine Leak Rate: 5.8E~8mbarl/s
Leak rate reference: Air: ∆p 2.5bar down 0.2bar in 6 months @3.2E-4mbarl/s
Helium:∆p 1 bar @1.3E-3mbarl/s Exactness: ±20%
Test Conditions: 100% Helium
Noise level: ≤85db(A)
Electric Control: Auto/Manual operation(Optional)
Electric supply: 380V, 50HZ
Helium concentration: 10% helium gas mixture, 100%pure helium(Optional)
Infrastructure:Integrated design,easy and quick installation and maintenance
Function can be added: Mistake proofing marks Bar code storage
Main features: Reliably identifies overall leakage / Fast leakage measurements / No man made errors
Process is easy to automate / Helium need no purification to remove / contaminants
